Hybrid Smartwatch — Dave Owsen

Design Goals

Smartwatch in Disguise

Fossil’s first two-hand hybrid smartwatch is for those wanting to track activity and receive notifications while having a discrete classic watch look.

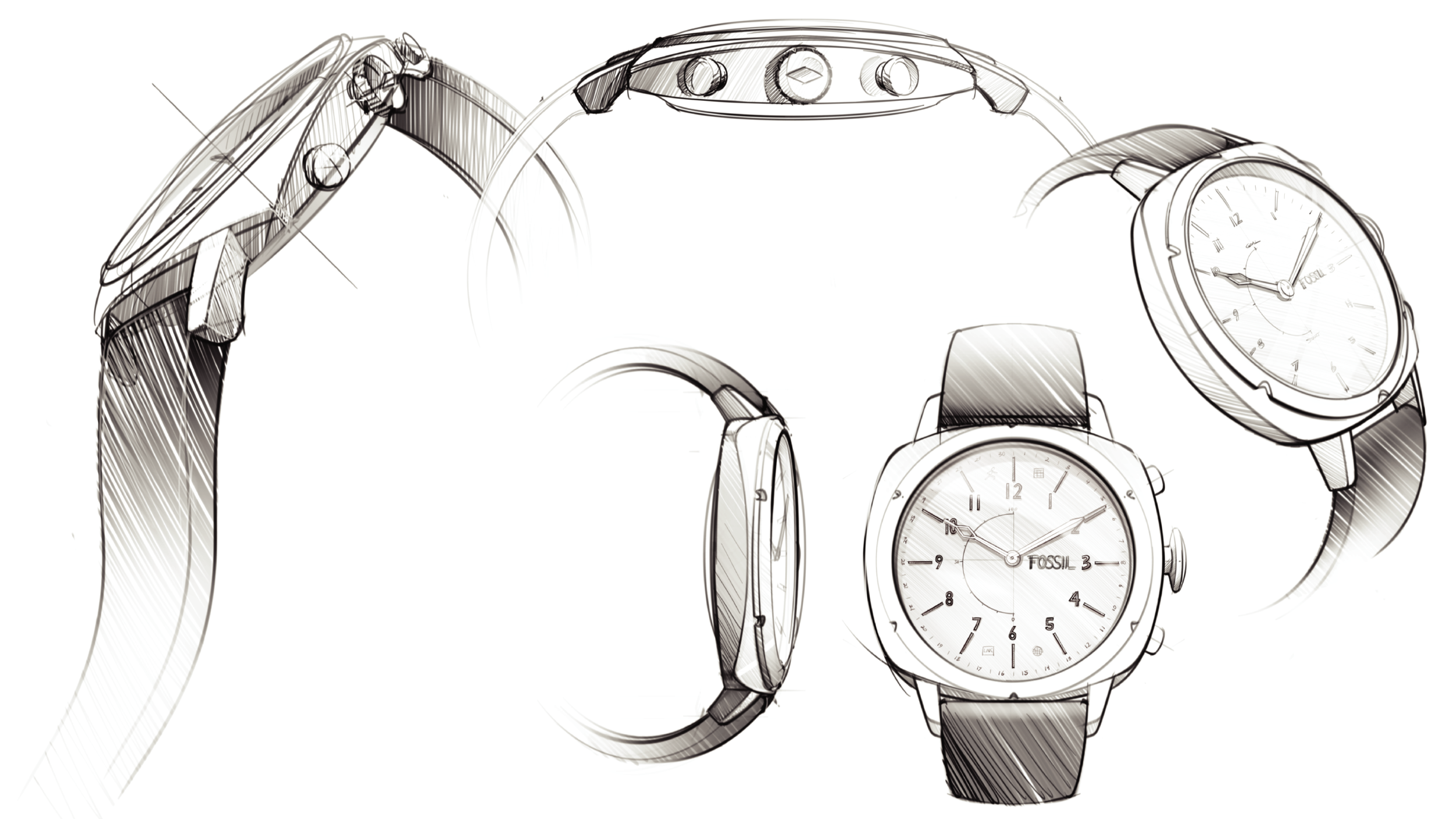

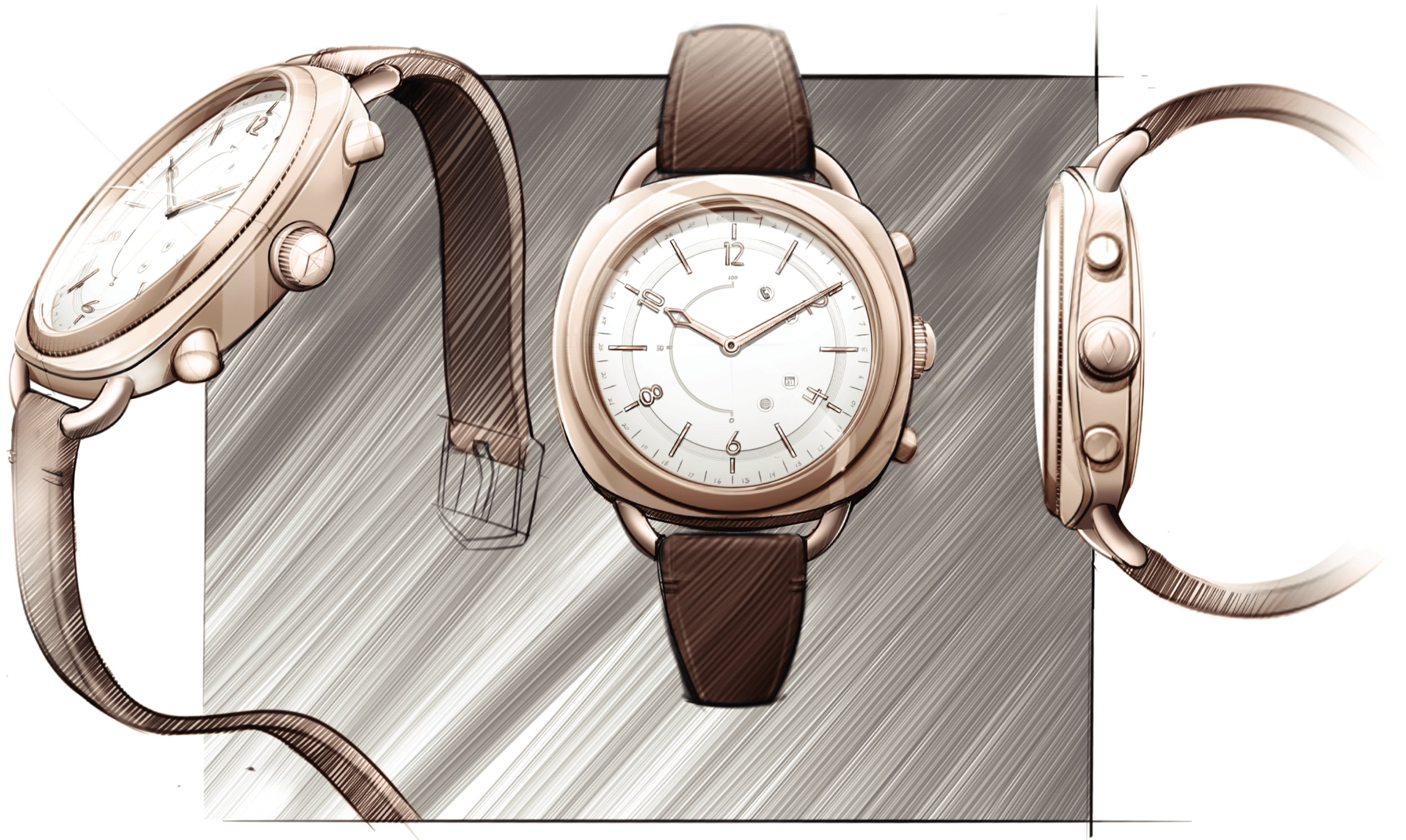

Theme Development

A square pillow-shaped case was chosen for its balance of aesthetic appeal, and larger internal volume which helped fit key tech components. The minute and hour hand needed to be cleverly designed for multiple functions including telling time, tracking the date, and indicating sleep and fitness goal progress.

Intuitive Function

As shown in the wireframes and quick video below, the hands come together, point to zero with the red tail, then move to indicate the percentage of completion for goals like steps on the 0-100 ranged value scale. The red Minute hand tip behaves similarly to indicate date.

A. Minute hand tail indicates ranged value for steps, sleep and custom goals.

B. Minute hand tip indicates time telling & day-of-month mode when toggled.

C. Pushers act as phone shortcuts & trigger data readout for A and B above.

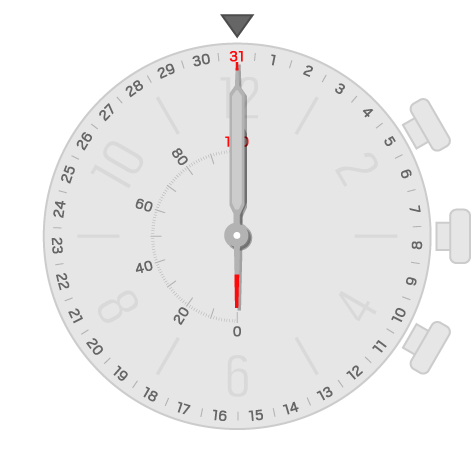

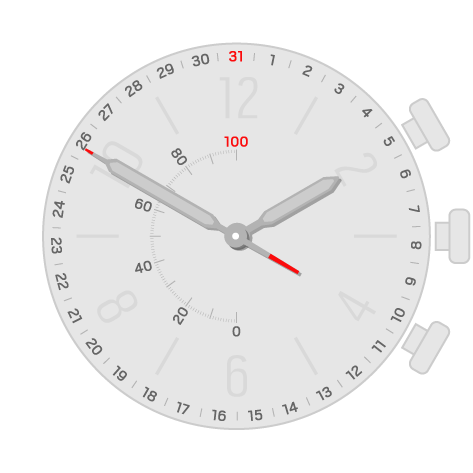

Date Wireframes

1. No input

2. Day of month

3. Hands align on 31st date

4. Hands indicate 20th of month

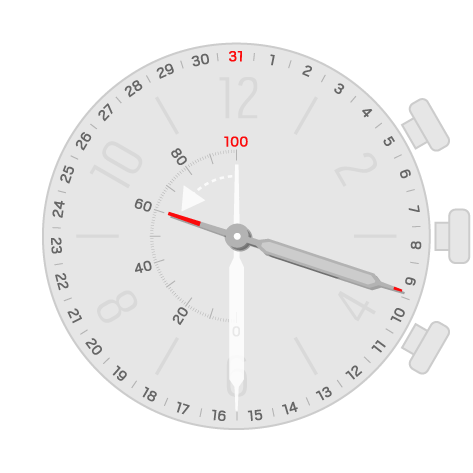

Ranged Value Wireframes

1. No Input

2. Press for Goal Complete %

3. Tail of hands align at 100%

4. Tail indicates 60% goal complete

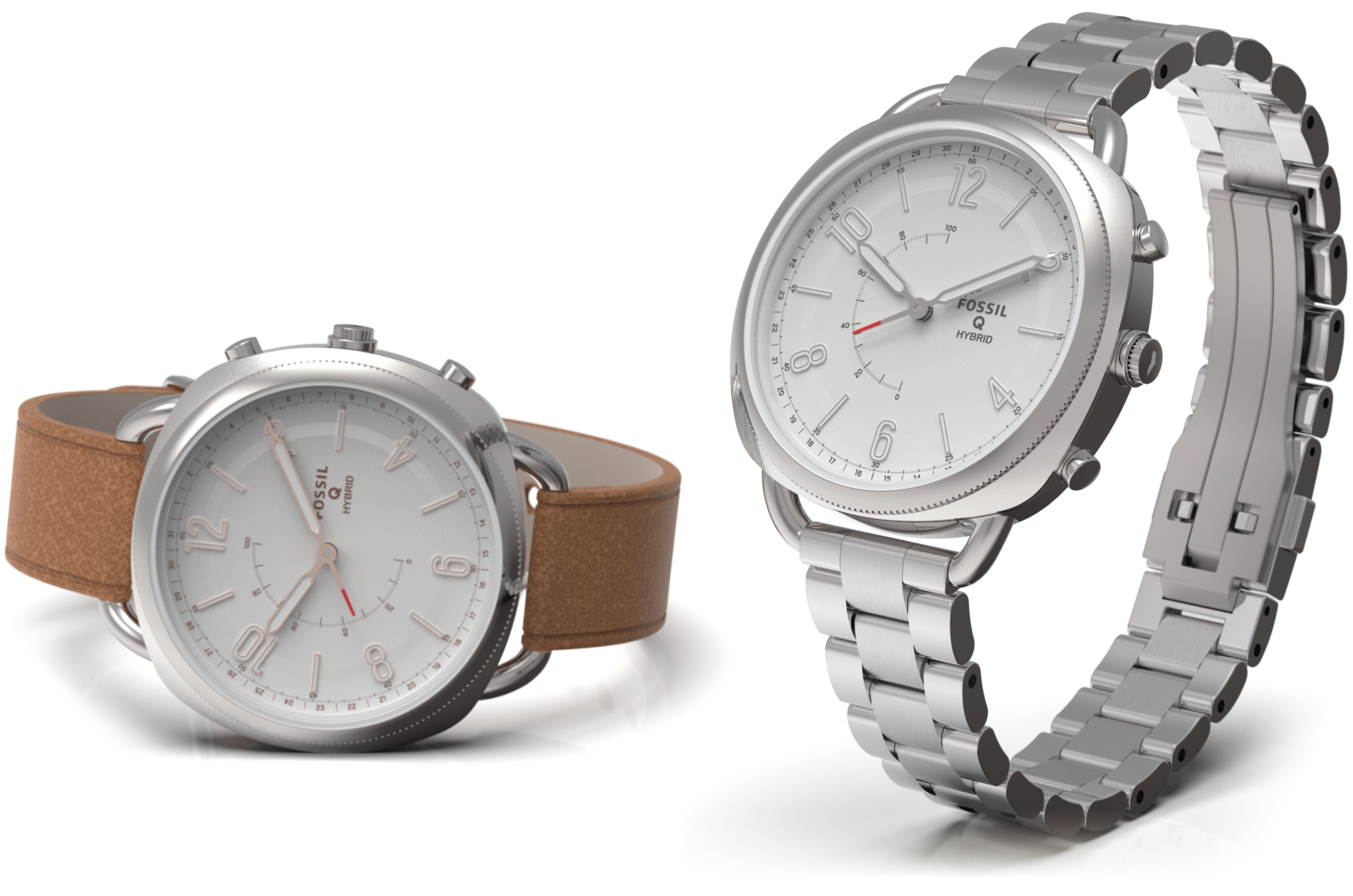

Traditional Watch Details

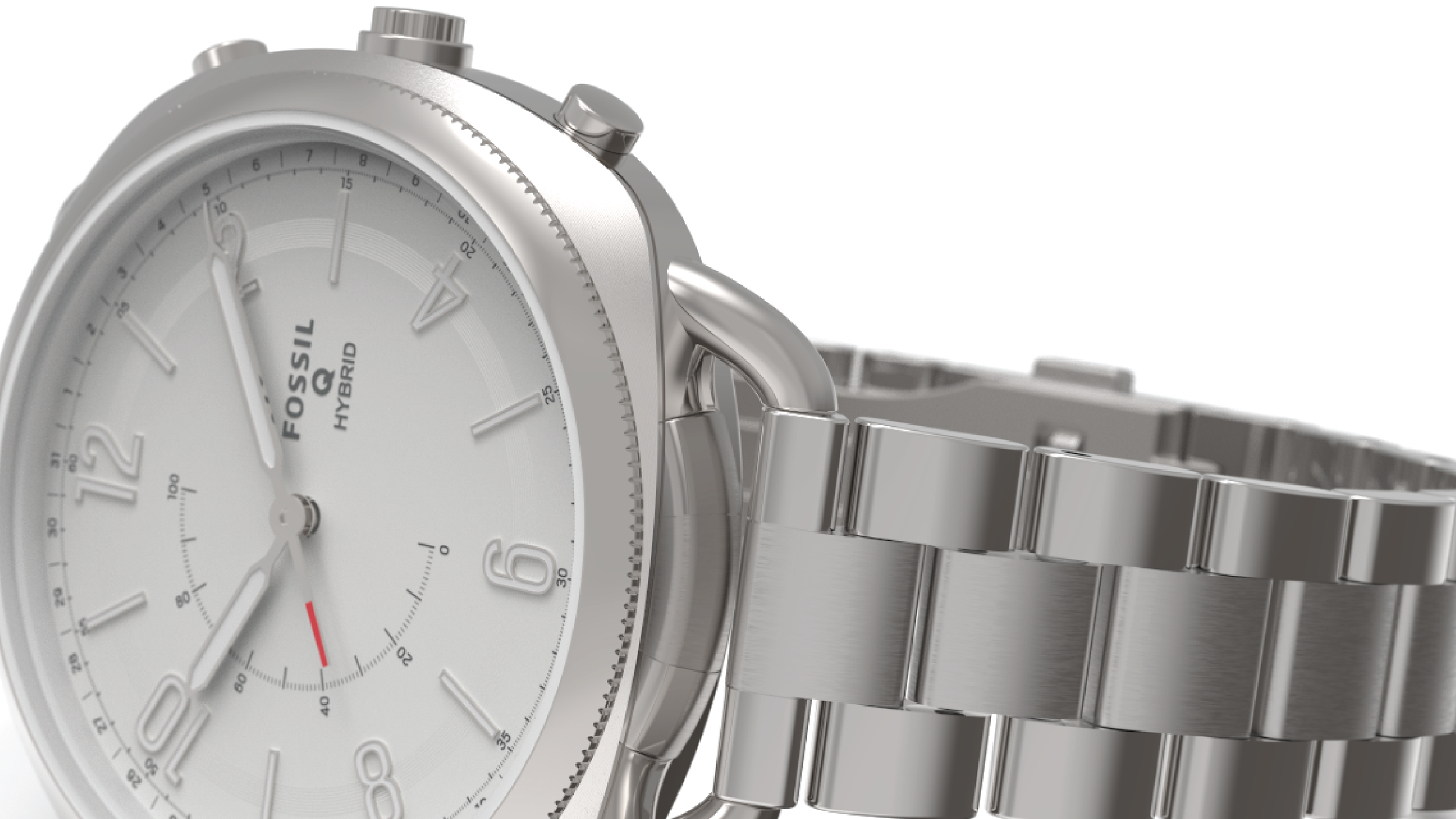

Stainless steel case features a brushed top finish, polished casewall, coin edge bezel, and vintage wire lugs on a 3-link bracelet or casual remborde edge leather strap. Satin dial has printed tracking and lume filled hands and indexes for visibility in dark settings.
